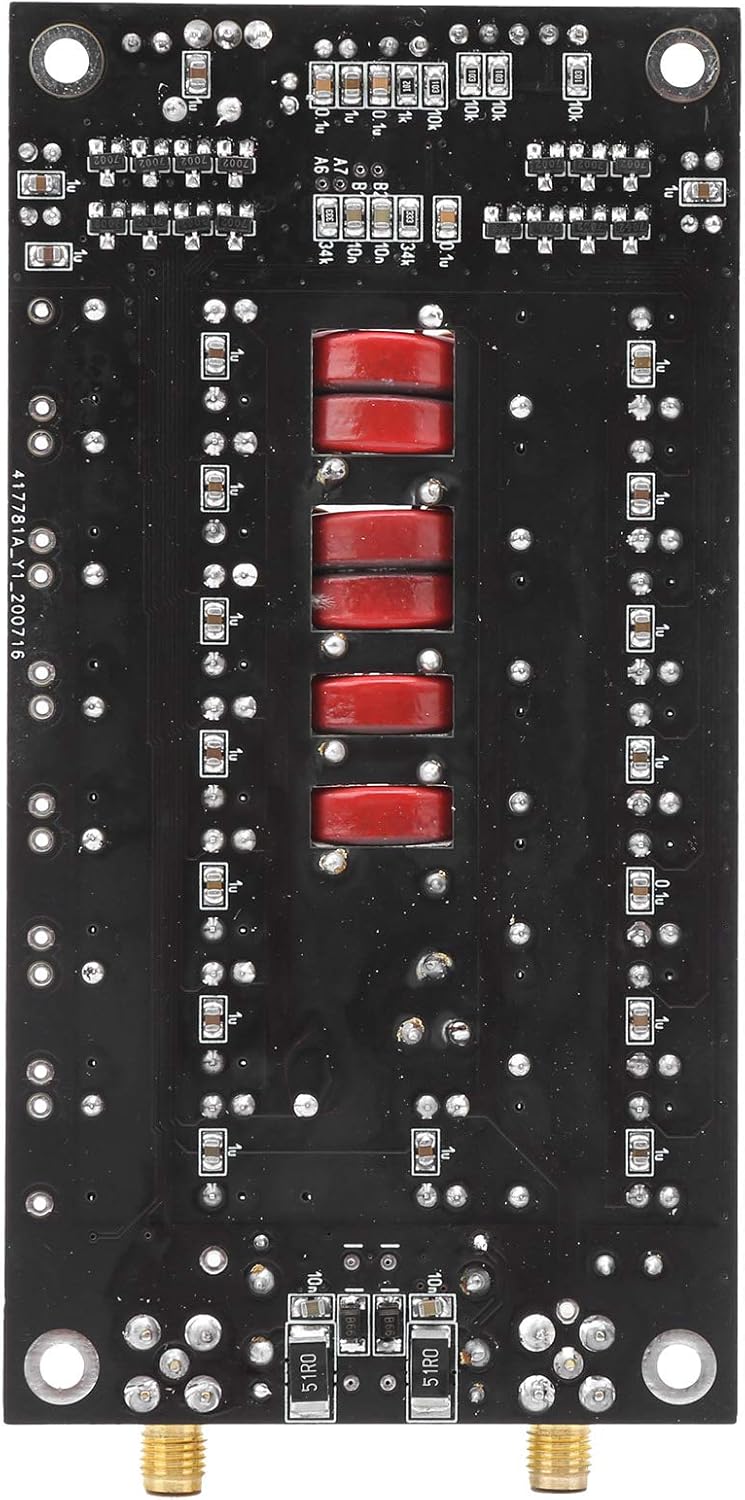

Antenna Tuner Board ATU 100 Finished Version with Screen and Tester Components - 400mA Operating Current - 1.6mm Double Sided PCB - Inductance Range 0.05uh to 8.53uh

Item Type: Antenna Tuner BoardMaterial: PCBModel: ATU-100Maximum Current Consumption: 400maNumber of Installed Inductors: 7Number of Installed Capacitors: 7Power Measurement Step of 10 : 0.1 Measurement Steps With Power Higher Than 10: 1 wattPower Measurement Accuracy: 10%Maximum Installation Inductance: 8.53uhMinimum Installation Inductance: 0.05uhMaximum Installed Capacity: 1869pfMinimum Installed Capacity: 10pfPackage List：1 x Motherboard1 x Connection Line1 x Module

• Durable Circuit Construction: This antenna tuner board utilizes a 1.6mm thick double sided PCB to provide structural integrity and a long service life for DIY tester components.
• Inductance Range Specifications: The module features a maximum installation inductance of 8.53uh and a minimum installation inductance of 0.05uh for precise antenna tuning applications.
• Thermal Management Design: Engineered with a large heat dissipation area, the module maintains consistent temperature levels to support stable long term operation.
• Current Passing Performance: The manufacturing process includes comprehensive tin spraying to ensure reliable passing performance for large and small currents up to 400mA.
• Finished Surface Quality: Featuring one piece without burrs, the board provides a smooth surface that facilitates easy installation and assembly of the finished version kit.
